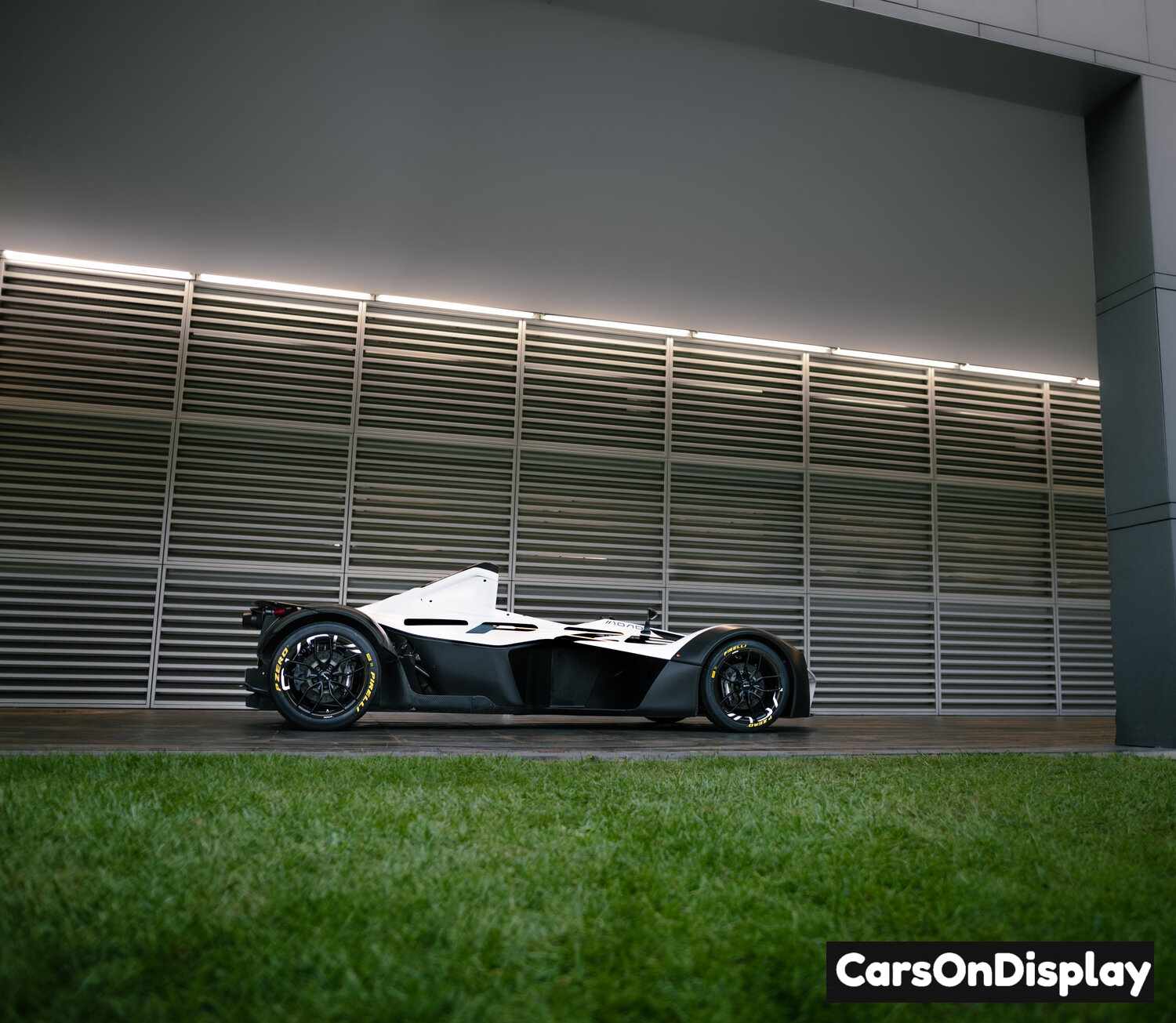

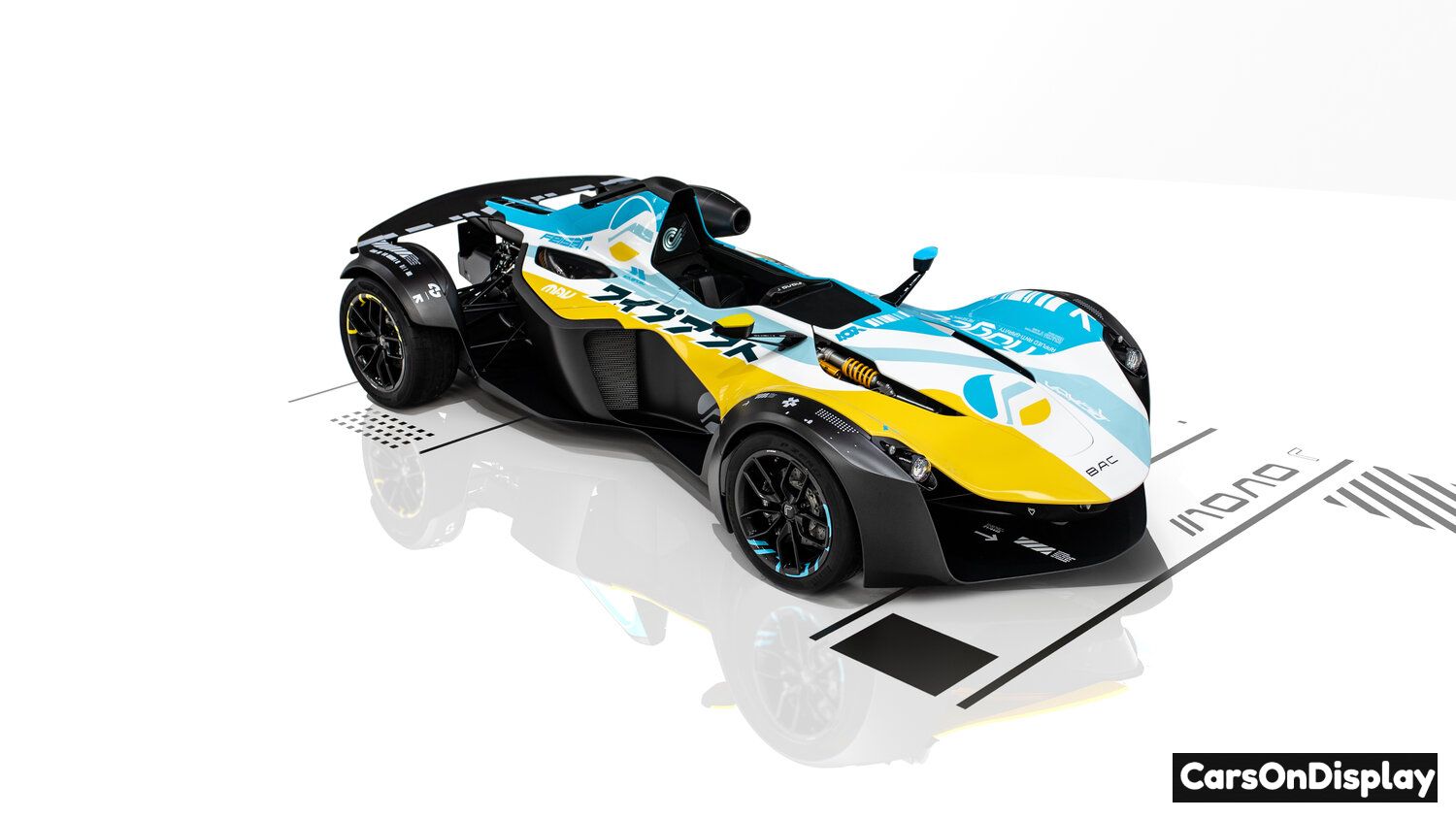

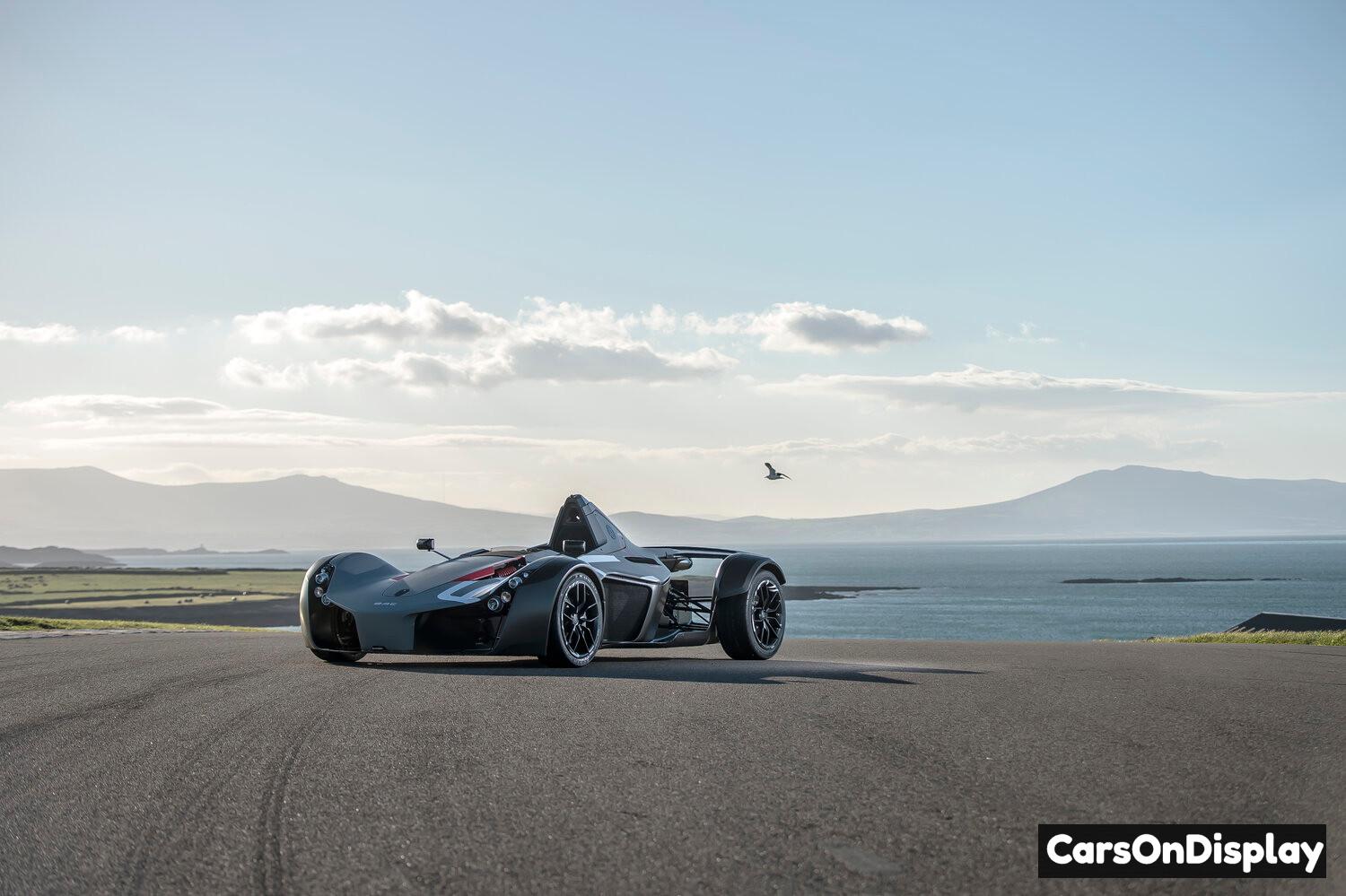

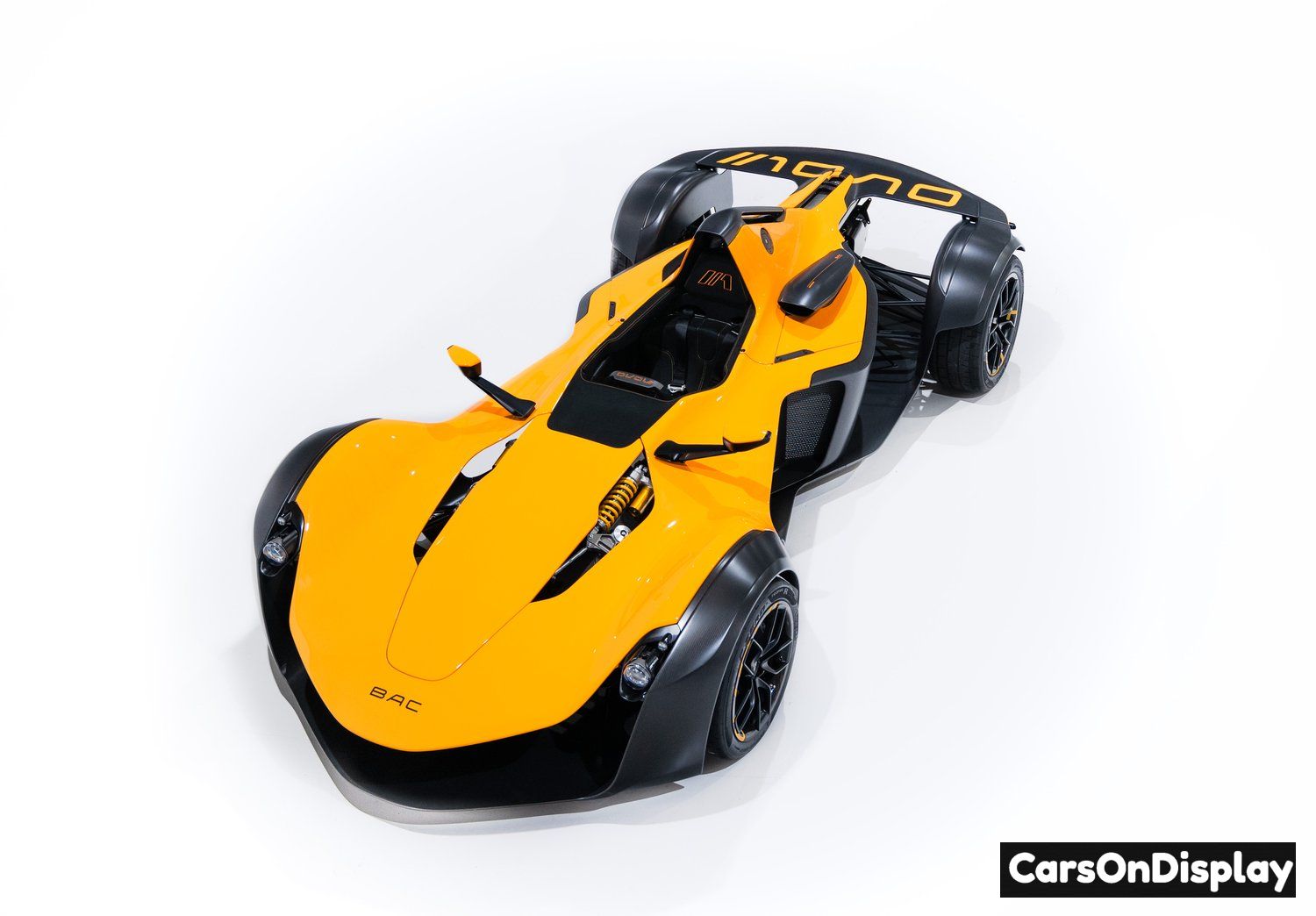

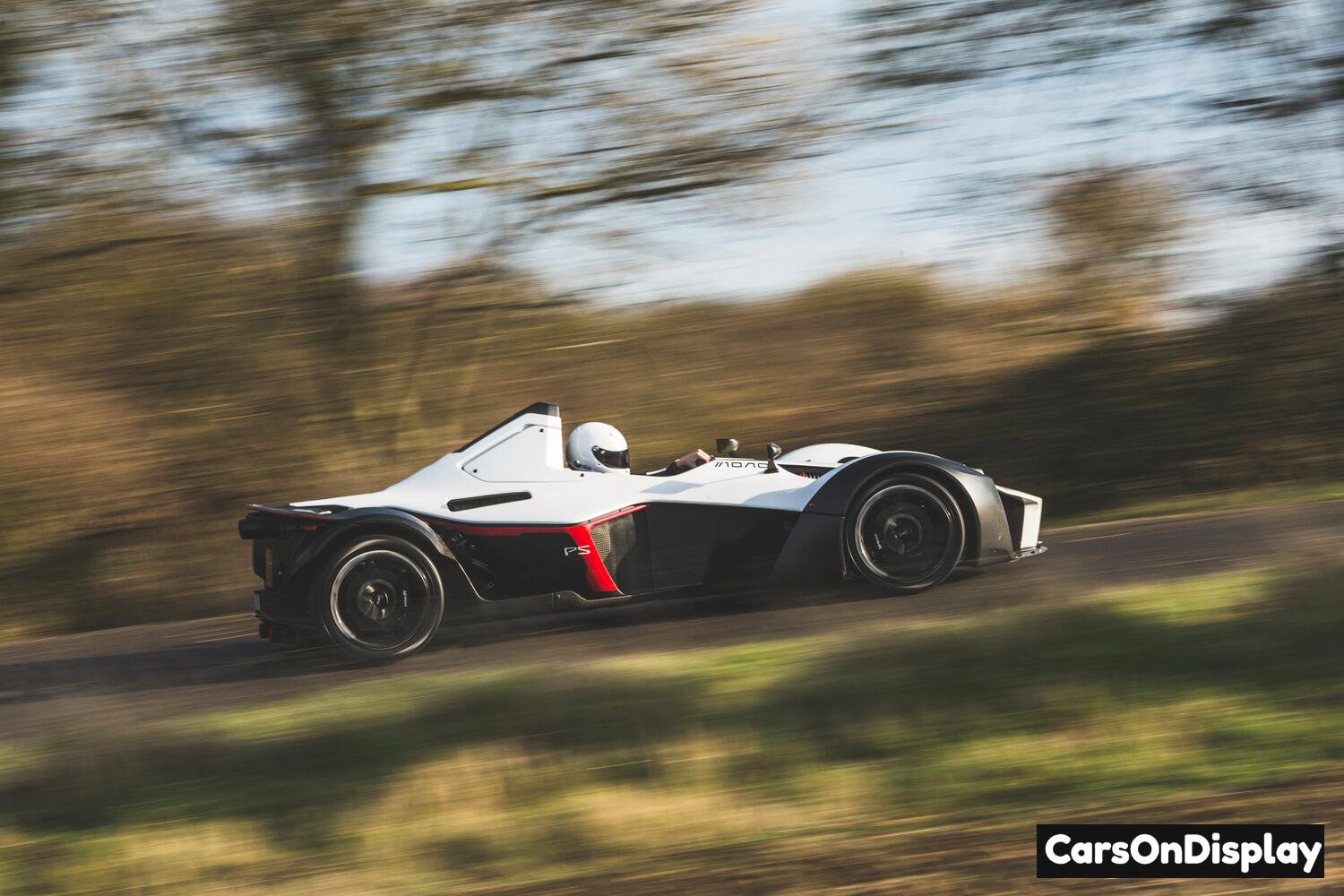

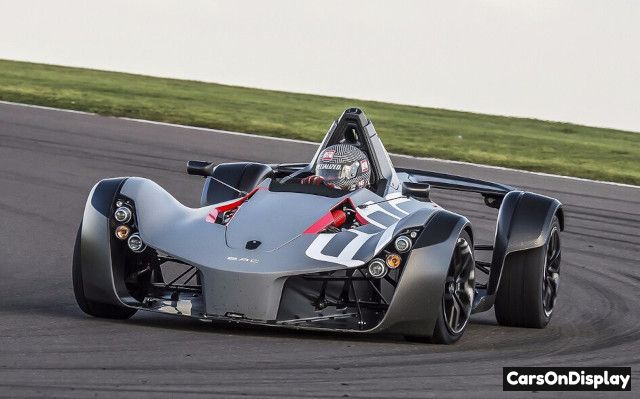

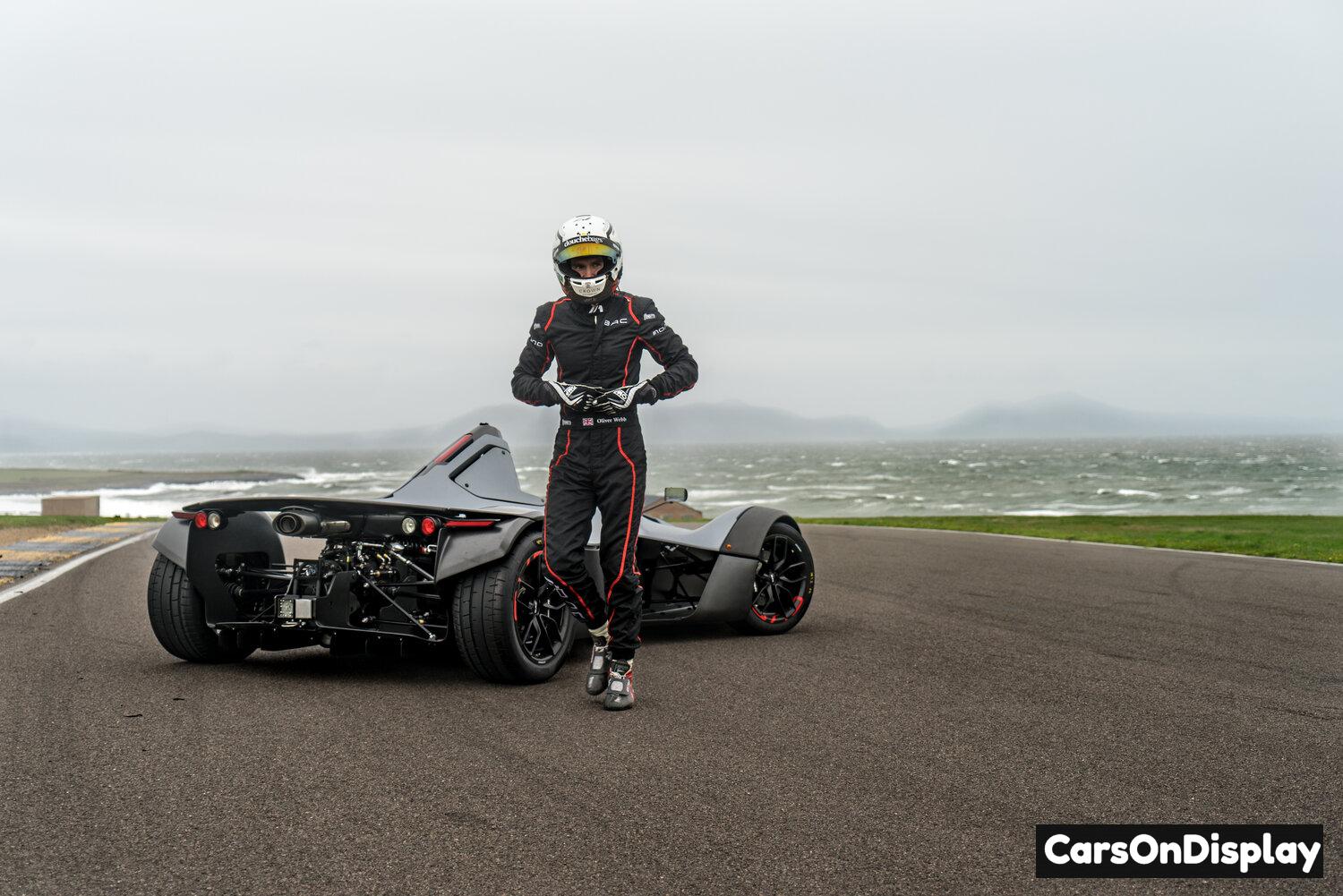

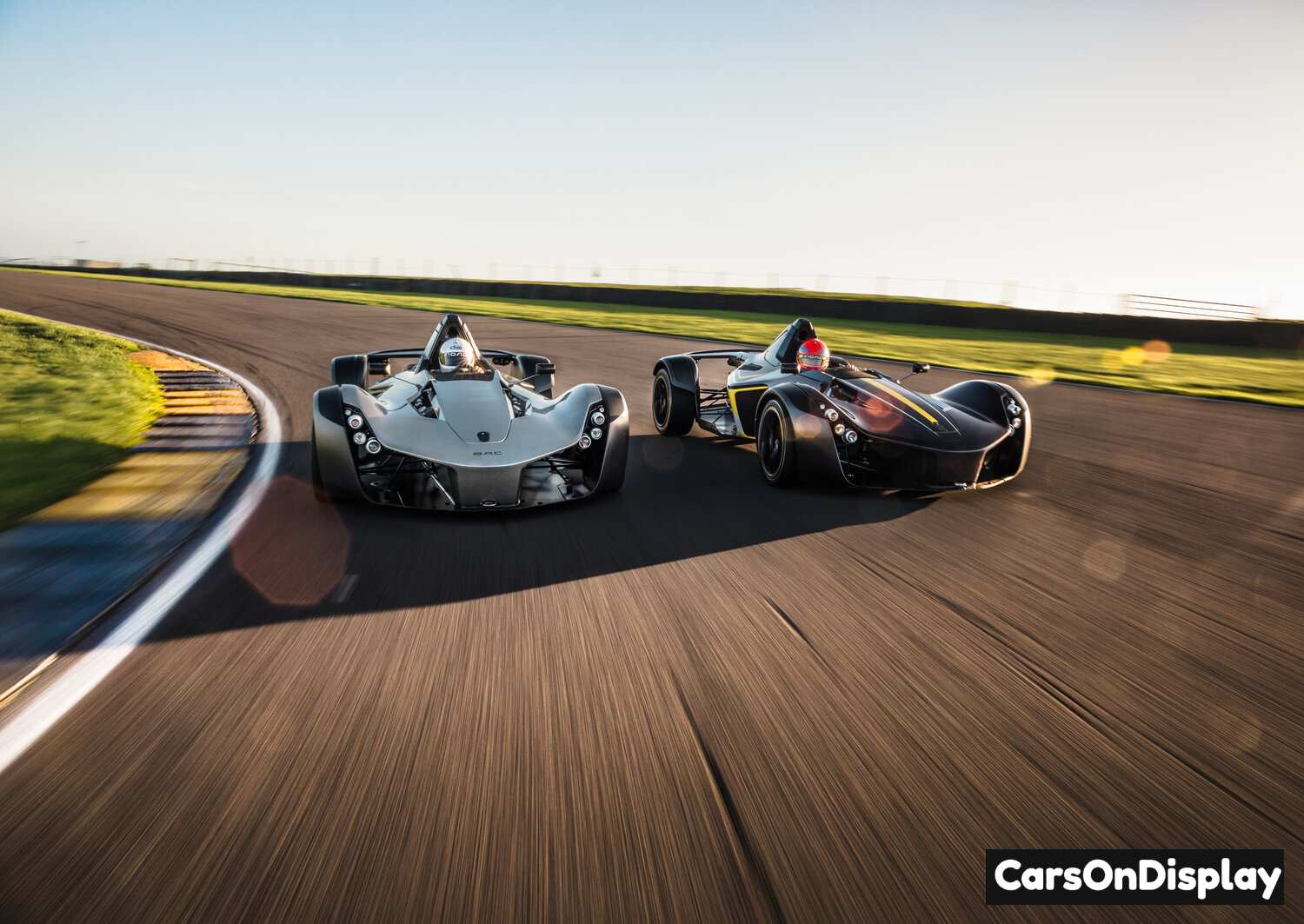

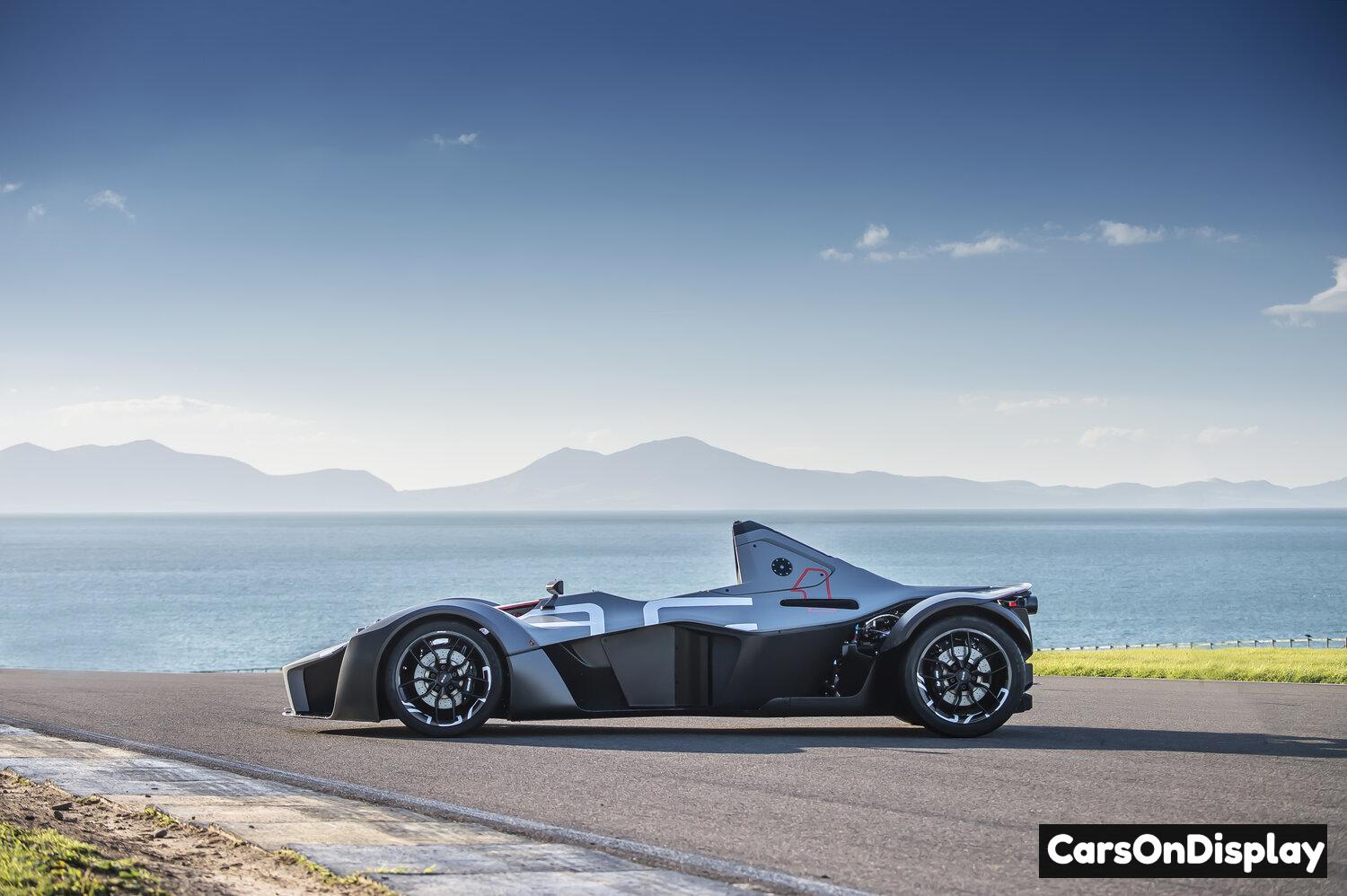

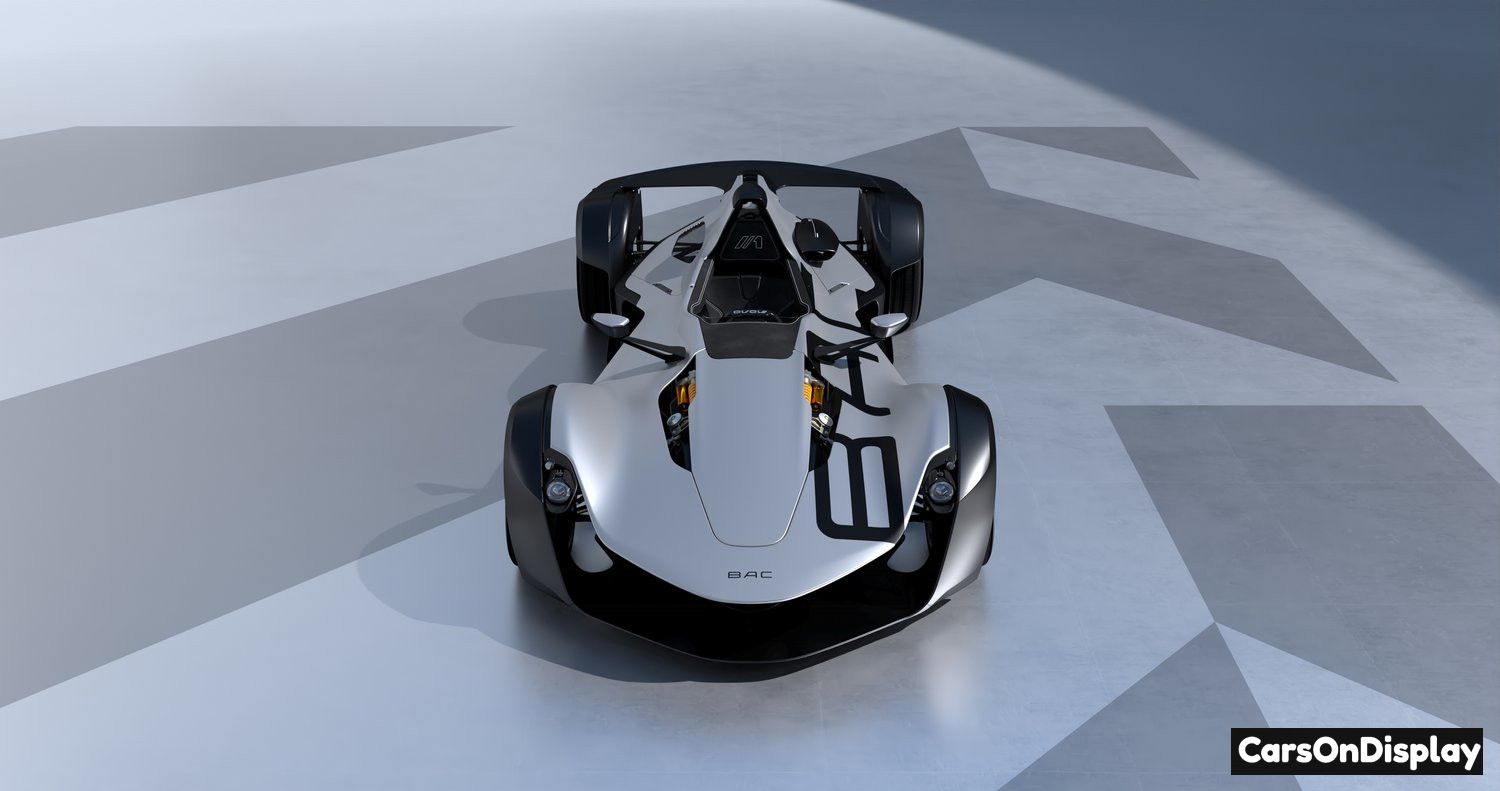

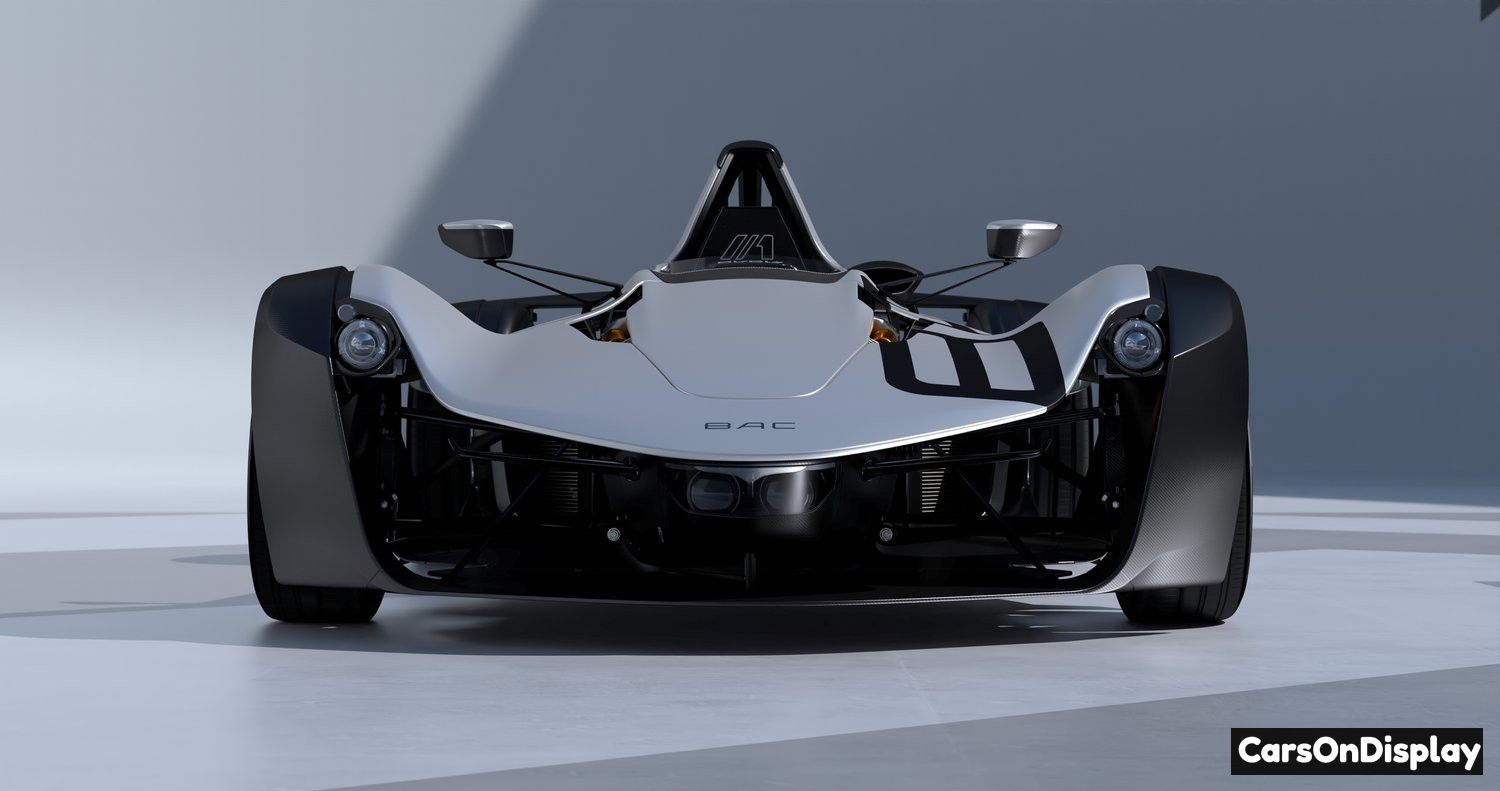

BAC Mono

Get the full details of the BAC Mono below

Rate BAC Mono:
4.0/5 (5 votes)
BAC Mono Price £ 213000 [United Kingdom]

The price could differ based on factors such as color, accessories and other features.

Country, City Retail Price Total Price
United Kingdom £ 213000 --
Features
Vehicle Construction
Body Type:
- Ultra - lightweight carbon fibre / foam sandwich
Safety Cell:
- 2nd generation 'optimised' chassis for increased interior space
- TIG welded cold drawn seamless tube
- RACMSA & FIA compliant ROPS
- Carbon fibre front and rear crash boxes
- Side impact structure
Aero:
- BAC / FKFS developed & tested low drag aero package
- BAC developed cockpit aero screen

Interior
Seat:
- Tillett / BAC developed fixed position carbon fibre
Trim:
- “Extreme” waterproof leather, Microcare MC waterproof “suede”
Steering Wheel:
- BAC developed 290mm diameter carbon fibre rim with billet aluminium housing
- GEMS LDS4 colour display system
- Illuminated switchgear
- 6 pin quick release steering boss
- Touch sensitive starter button
Seat Belts:
- Willans 5/6 Point Harness, FIA compliant
Technical Specifications
Vehicle TypeCar
FuelPetrol
Engine Displacement2488.00 cc
Engine DetailsNormally Aspirated, 4 cylinder, in-line, semi-structurally mounted, VVT
Bore x Stroke89mm x 100mm
Engine LubricationDry sump with internal scavenge pump
ClutchAP Racing (sintered high performance), Intelligent launch control
Maximum Power305 bhp
Maximum Torque308 Nm
Transmission6 speed sequential

Gear Selection:
Pneumatic semi-automatic closed loop system operated via steering wheel mounted paddles
Shiftec valve block
Switchable auto upshift
Brakes
Front BrakeAP Racing, 295 mm steel ventilated discs, crossed drilled, billet machined mounting bells
AP Racing, Formula Car Caliper - Radial 4 Piston
Rear BrakeAP Racing, 295 mm steel ventilated discs, crossed drilled, billet machined mounting bells
AP Racing, Formula Car Caliper - Radial 4 Piston
Chassis and Suspension
Front SuspensionAdjustable pushrod activated twin wishbone system with needle roller bearing mounted bell cranks, rising rate, optimized camber change and roll centre position, full Ackermann geometry, shim adjustable camber
TIG welded Seamless CFS3 steel uprated aero tube twin wishbone
Two way adjustable Sachs racing RDS - 36 Formula system dampers
Rear SuspensionGearbox mounted, Adjustable pushrod activated twin wishbone system with needle roller bearing mounted bell cranks, rising rate, optimized camber change and roll centre position, shim adjustable camber
TIG welded Seamless CFS3 steel uprated aero tube twin wishbone
Two way adjustable Sachs racing RDS - 36 Formula system dampers
Tyres
Wheels / RimFront: O.Z. Racing / BAC developed HRT alloy 7.5j x 17in
Rear: O.Z. Racing / BAC developed HRT alloy 8.5j x 17in
Front TyreBespoke Pirelli Trofeo R / BAC developed 205/40 R17
Rear TyreBespoke Pirelli Trofeo R / BAC developed 255/40 R17
Dimensions
Length4952 mm
Width1836 mm
Height1110 mm
Wheelbase2565 mm
Weight580 kg
Ground Clearance100f 110r mm
Fuel Tank Capacity35 litres
Additional Details
Power to weight: 525 bhp per tonne
Weight distribution: 48% (f) / 52% (r)
Camshafts: Performance inlet and exhaust camshafts and uprated valve springs
Induction System: Gas flowed cylinder head with individual butterfly port throttles
Intake System: F3 style BAC / ITG aero optimized carbon inlet, remote filtration system and carbon airbox
Exhaust: BAC developed, ceramic coated, 4 into 2 into 1 stainless steel exhaust manifold and centrally mounted exhaust system
Engine Management: Specialized Control Systems Delta 880
Safety: Master Kill Switch, 6 stage traction control (+off), FIA compliant plumbed-in Lifeline Fire Extinguisher System
Steering: BAC/Titan developed high ratio rack, 1.7 turns lock-to-lock
